此型夹模器以杠杆原理作用,夹持模沿,并不需“U”型沟,因此有更宽广的适用范围。

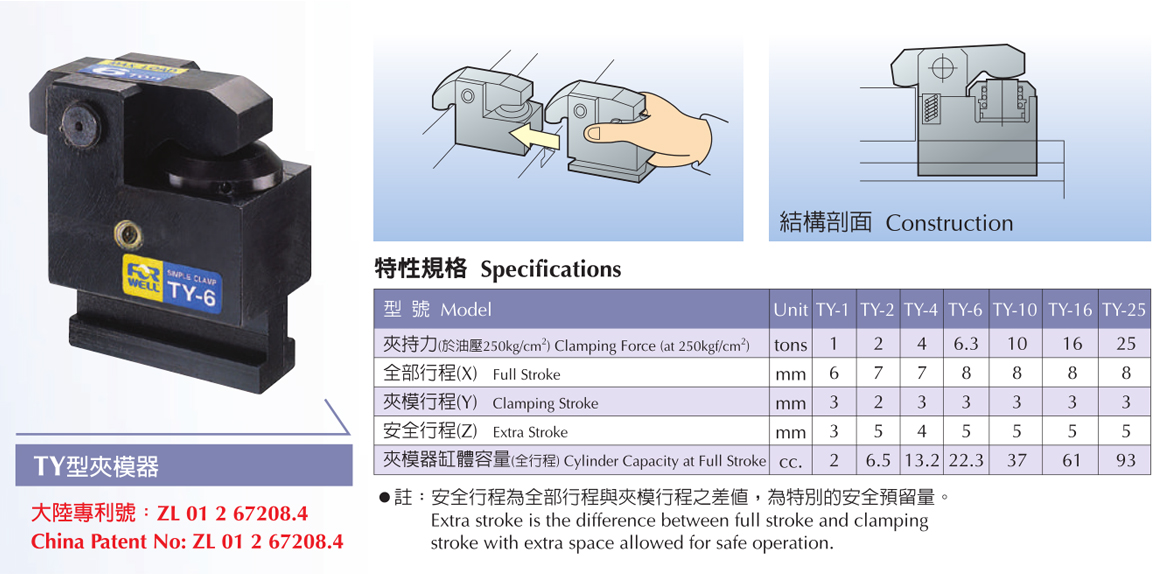

Because this lever-type clamp does not require a U-Slot on the die shoe it may be used in a wide range of applications.

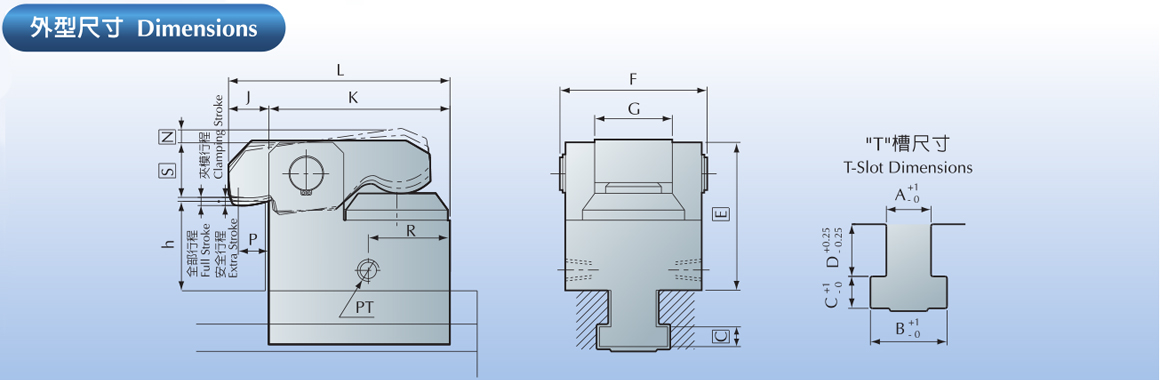

The base of the clamp is machined to fit the T-slot on the bolster.

The flange-mount model clamp may be bolted onto the bolster.

The automatic slide model makes remote control possible.
